Shape Bender Plugin for SketchUp: Bend Your Ideas Into Reality

Introduction: Why Curves Make a Difference

Have you ever walked by a building and noticed how smooth its curves look? Those curves make buildings feel alive and modern. But making curves in SketchUp can be tricky. You have to move lots of edges and faces to match the path. That’s why the Shape Bender plugin is so helpful. It lets you take a straight object and bend it along a path quickly, saving time and effort.

What Is Shape Bender?

Shape Bender is a plugin made by Chris Fullmer for SketchUp. Think of it as a tool that bends 3D objects like fences, signs, or panels along a curved line. You start with a straight shape, draw a line to show its base, then draw the curve you want it to follow. The plugin gives you a preview, so you can see how it will look before applying it. It’s a smart way to add curves to your models without building everything from scratch.

How Shape Bender Works

To use Shape Bender, you first need to make sure your object is a group or component. Loose geometry can break or behave strangely. Next, draw a base line along the red axis. This line tells the plugin the original alignment of your object. After that, draw the bend path that shows where the object should go. Select your object, activate Shape Bender, pick the base line, then the curve. You can adjust the direction with the arrow keys and press Enter when you are happy with it.

The plugin also allows you to make multiple copies of the same object bend along the same path. This is perfect when you need repetition, like curved railings, fences, or panel cladding. It saves a lot of time and keeps everything consistent.

Common Uses of Shape Bender

Shape Bender is useful in many design situations. You can use it to bend railings and fences along a curved pathway. It can also curve text or signs to follow arches. Architects often use it for curved metal panels on building facades. Even landscape designers use it for winding paths or curving walls. Spiral staircases and curved roofs can also be modeled with this tool. By automating the bending process, Shape Bender lets you focus more on design ideas and less on manual modeling.

Curved Railings and Fences

Instead of building every railing section by hand, Shape Bender lets you draw a single profile and bend it along a curve. This makes the final model look smooth and professional. Designers save hours by using this method, and the curves are perfectly aligned with the path. You can tweak the curve easily if needed without starting over. This is especially helpful in landscape design and public spaces.

Curved Signage and Text

Curving text and signs manually in SketchUp can be frustrating. Shape Bender lets you place letters or logos along a curve with minimal effort. You can adjust the path and preview the result, making sure it looks correct. This is very handy for signage, banners, or decorative architectural features. The text stays readable and proportionate along the curve, which is important for client presentations.

Curved Facade Panels

Modern buildings often use wave-like or serpentine metal panels. Shape Bender helps designers create these panels in SketchUp. You can model a single panel, then bend it along a curve to match the facade design. This is great for testing how light and shadows interact with the curved surface. You can experiment with different curve paths to see what looks best before going to production.

Spiral Staircases and Curved Roofs

For staircases, handrails, and rooflines, Shape Bender saves a lot of work. You can model one segment of the staircase or roof and bend it along a spiral or curve. The plugin ensures that each part follows the path correctly. This is especially useful in conceptual design phases where you want to explore ideas quickly. It also helps when creating dramatic interior or exterior features.

Landscape Design

Curved paths, benches, or fences in parks and gardens can be hard to model by hand. Shape Bender makes this process faster and more accurate. You can bend profiles along terrain contours or curved walkways. This makes your landscape models look natural and professional. It also allows designers to experiment with different layout ideas easily.

Tips and Best Practices

Even though Shape Bender is easy to use, there are a few things to keep in mind. Make sure your base line is properly aligned with the red axis. If it isn’t, the bend may distort the object. The bend path should be a smooth, continuous curve. Jagged or segmented paths can produce unwanted results. Also, very tight curves might stretch or squeeze the object. Start with gentle curves to get used to the tool.

Using groups and components is essential. Loose geometry won’t bend correctly and can cause errors. Grouping objects also lets you bend multiple copies along the same path. This is especially helpful for repetitive elements like railings or paneling. The arrow keys let you adjust the bend direction if it looks backwards. Small adjustments can make a big difference in the final appearance.

How Designers Apply Shape Bender in Real Projects

Although few official case studies mention Shape Bender, it’s used conceptually in many modern designs. Hotels and museums often feature curved balconies or wave-like facades. Parks and public spaces have fences, benches, and pathways that follow natural curves. Even text and signage in public areas can be curved using this logic. Shape Bender helps designers experiment with these ideas in SketchUp before moving to more advanced software.

Real-World Building Examples and Visual Gallery

Heydar Aliyev Center, Baku (Zaha Hadid)

This building is famous for its flowing curves and smooth surfaces. Designers could use Shape Bender to model curved panels or railings in SketchUp. The curves create a sense of movement that makes the architecture feel alive.

Dancing House, Prague

The Dancing House has a facade that appears to dance with curves and asymmetry. Shape Bender can help visualize curved window frames or decorative elements in conceptual designs. You can experiment with the bending paths to match the design concept.

Emporia, Malmö, Sweden

Emporia’s glass facade bends around corners for a fluid effect. In SketchUp, Shape Bender allows designers to bend panels or signage to explore these curves. This helps in testing shadow patterns and overall aesthetic impact before construction.

Wave-Like Facades & Boutique Hotels

Many boutique hotels use wave-like panels and balconies. Shape Bender can bend straight elements along curves for facade studies. It’s helpful for visualizing how light and shadows move across the surfaces.

Landscape Parks and Pathways

Curved benches, pathways, and fences in public parks can be tested using Shape Bender. This ensures elements align with terrain while keeping curves smooth and natural.

Pavilion Roofs and Arches

Temporary pavilions or concept roofs with organic shapes can be modeled quickly. Shape Bender lets you bend roof segments along paths to check the design flow.

Adding these visual examples gives readers practical ideas on how to use Shape Bender in real-world designs. They can see the connection between conceptual SketchUp models and iconic curved architecture.

Installation and Setup

You can download Shape Bender from the SketchUp Extension Warehouse or SketchUcation Plugin Store. Once downloaded, open SketchUp’s Extension Manager and install it. After installation, you’ll see Shape Bender under the Plugins menu. Make sure to restart SketchUp if needed. The plugin works with most modern SketchUp versions.

Create a Group or component to be bend.



It should have a line along the Red axis this line can be drawn parallel to the component

Select the Group or component to be bend.

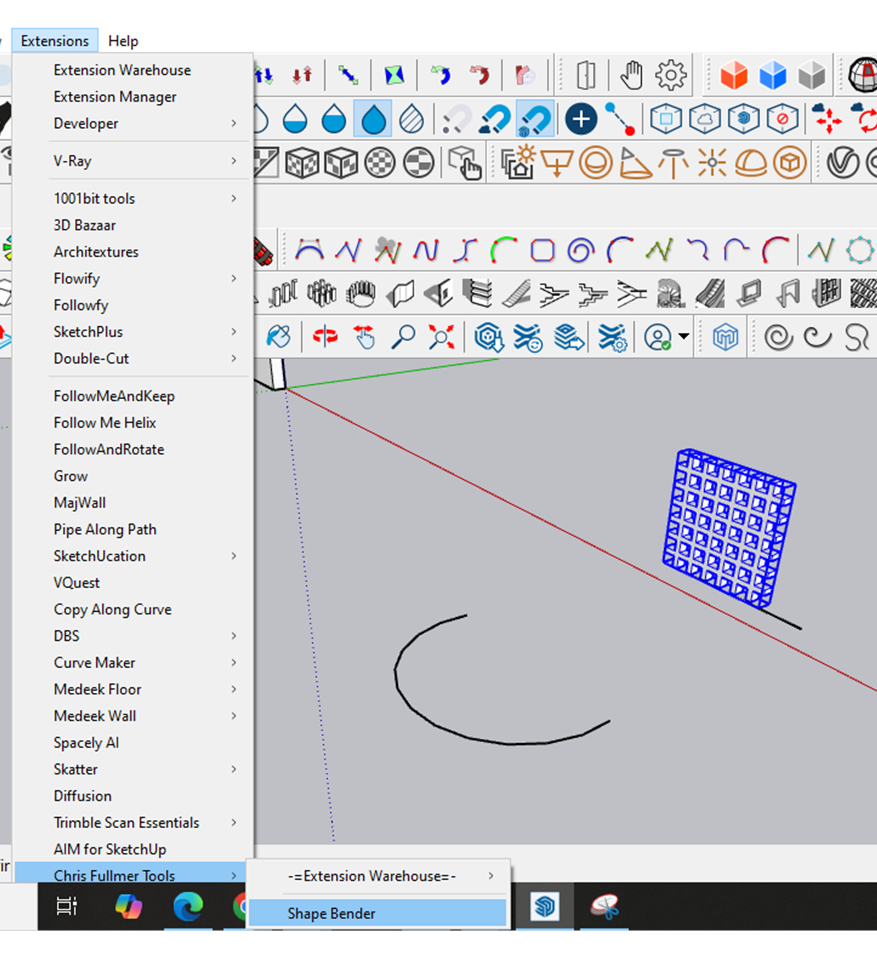

Extension – Chrisfullmer Tools- Shape Bender should be selected.



Next Select the Line drawn parallel to the component along red axis.

Along the Line it will show start and end.

Next select the curved profile.



The component will be bend along the curved profile.

Practice with simple objects first. Create a rectangle, make it a group, and try bending along a gentle curve. This helps understand how the base line and path affect the bend. As you become comfortable, move to complex shapes like staircases or curved facades.

Conclusion: Why Shape Bender Is Worth It

Shape Bender is more than a plugin. It’s a creative tool that simplifies adding curves to your SketchUp projects. It saves time, reduces frustration, and improves model aesthetics. Designers can experiment with bold forms without manually adjusting every segment. Whether you are an architect, designer, or hobbyist, Shape Bender helps bring your ideas to life.

Curves make buildings, landscapes, and interiors feel dynamic. With Shape Bender, adding those curves becomes simple and efficient. You can test multiple designs quickly, visualize shadows and light, and communicate ideas clearly to clients. Grouped objects, smooth paths, and proper base alignment are key to mastering the tool. Shape Bender encourages experimentation and creativity, making SketchUp a more powerful design tool.
