Importing Revit Files to Blender: Step-by-Step Workflow

Introduction: Why Import Revit Files to Blender?

Revit is one of the best tools for architects and engineers to create precise building information models (BIM). It’s fantastic for technical drawings, construction documents, and coordination. But when it comes to visualizations, Revit alone feels limited. That’s where Blender comes in.

Blender is a free and open-source 3D software known for its powerful rendering engines and animation tools. Architects, students, and designers often move their Revit models into Blender to create stunning, photorealistic images or even walkthrough animations.

The challenge? Revit doesn’t export directly to Blender. The solution is a workflow using FBX files. In this guide, we’ll cover how to export from Revit, import into Blender, fix common issues, and prepare your model for high-quality rendering.

Step 1: Exporting Revit Files to FBX

The first step is getting your Revit model out of the BIM environment in a format Blender understands.

1. Open your project in Revit.
2. Make sure you’re in a 3D View—never export from a plan view, or you’ll lose geometry.
3. Go to File → Export → FBX.
4. Choose a name and save location.

At this stage, Revit creates an FBX file containing the geometry and some materials. However, keep in mind that textures often don’t transfer perfectly, so you may need to reassign them later in Blender.

Tip: Before exporting, clean up the model. Hide unnecessary categories like furniture, entourage, or MEP systems if you don’t need them in the visualization. This reduces file size and makes Blender imports smoother.

Step 2: Importing FBX into Blender

Now that you have an FBX file, it’s time to bring it into Blender.

1. Open Blender.
2. Go to File → Import → FBX.
3. Navigate to your saved Revit export and select it.
4. Wait a moment as Blender loads the geometry.

The model will now appear in your viewport. Depending on your Revit model’s size, the import may take longer. Don’t worry if you don’t see textures yet—this is expected.

Common issues at this stage include:

• Scaling differences between Revit and Blender.
• Overlapping geometry due to multiple categories.
• Missing materials, especially custom ones.

These problems are easy to fix in the next steps.

Step 3: Organizing Elements in Blender

When you import from Revit, Blender often creates hundreds of separate objects—every wall, door, and window as its own mesh. This makes assigning materials chaotic.

To simplify:

1. Use Shift + Select to highlight similar elements (all walls, for example).
2. Right-click → Join.
3. Repeat for categories: walls, floors, roofs, doors, windows, furniture.

By joining objects into groups, you make the model much easier to manage. Instead of assigning a wall material 50 times, you do it once for the whole wall group.

This step also improves performance, as Blender handles fewer objects in the scene.

Step 4: Assigning Materials and Fixing Issues

With elements grouped, it’s time to apply materials.

1. Go to the Shader Editor in Blender.
2. Select your grouped element (e.g., walls).
3. Assign a new material (e.g., concrete, brick, or paint).
4. Repeat for floors, roofs, glass, and furniture.

Common fixes needed at this stage:

• Incorrect scale → Check units in Blender. If the model is too small, scale up by factors of 10 or 100.
• Missing textures → Reapply manually. Use PBR textures for realistic results.
• Too many objects → If you forgot to join, repeat Step 3.

Tip: Don’t overcomplicate materials. Start simple, then refine textures with bump maps and reflections.

Step 5: Preparing for Rendering in Blender

Now comes the exciting part—setting up your model for final visuals.

1. Clean the model. Delete hidden or unnecessary geometry that imported from Revit.

2. Apply modifiers. Use bevels or smooth shading for a polished look.

3. Set lighting. Blender offers two main render engines:

• Eevee for fast, real-time rendering.
• Cycles for high-quality, photorealistic rendering.

4. Add cameras. Place cameras at eye-level for realistic perspectives.

5. Render test images. Adjust until you’re happy with the lighting and materials.

Finally, render your final image or animation. Blender can export in PNG, JPEG, or even video formats.

Case example of the Revit File to be imported to Blender

Revit Files can be imported and edited using Blender before importing,

Let's explore the step's involved,

 1. Save the File to FBX format.

Open the 3D View of the Revit file, Under

File - Export - FBX

Give required File name in a Folder location and Click Save.

2. Import the File in Blender

Open Blender

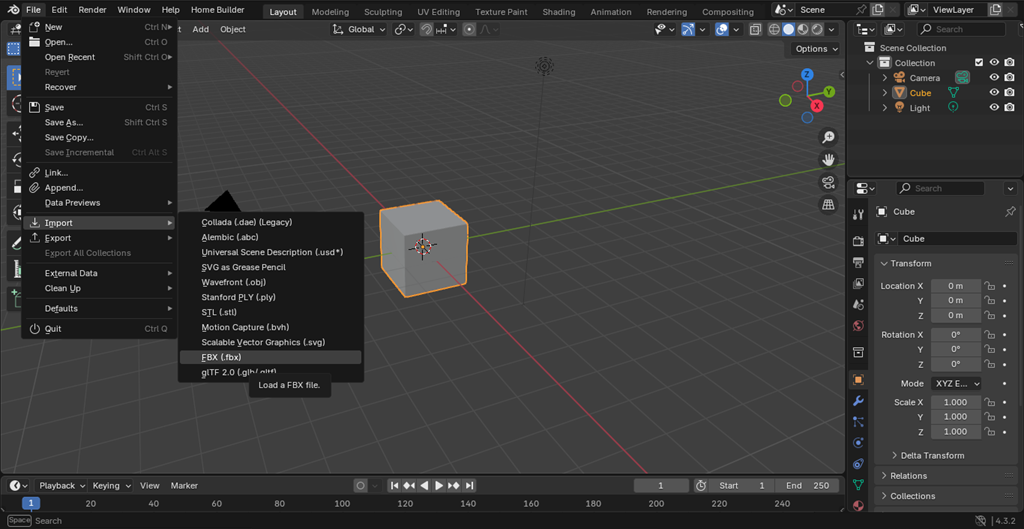

Under, File - Import - FBX

Open the File location, Select the file to be imported and click Import FBX

The View is Imported into Revit.

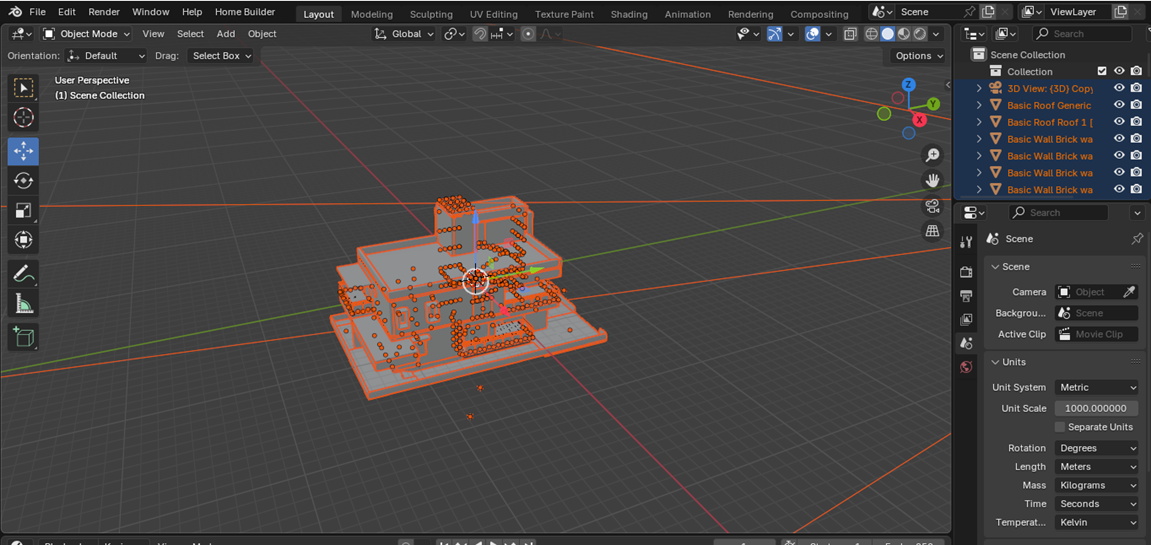

Join all the elements of same category, Wall are selected

Use shift command to Select all the walls, Right click on the view click join.

All the wall element will be join under one element as below when assigning material this will be very useful.

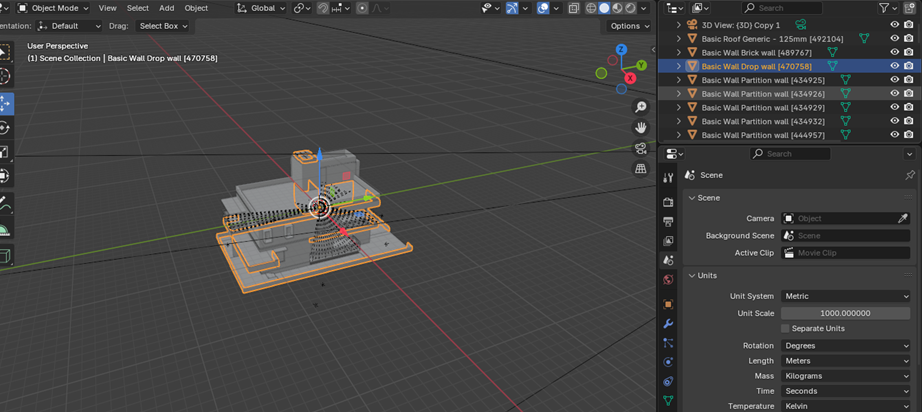

Drop wall's are joint to single element.

Above procedure is repeated for other elements also like Furniture, Door's, Window's

Door's are joint .

Let's explore more in future post's!

Step 6: Best Practices for Revit to Blender Workflow

If you plan to use this workflow often, these habits will save you time:

• Clean up in Revit first. Fewer elements mean smoother imports.
• Name categories logically. Walls, floors, and roofs should have clear names in Revit before exporting.
• Check scale early. Always verify units after import to avoid tiny or huge models.
• Keep materials light. Use Blender for textures instead of carrying too many from Revit.
• Save a template in Blender. Pre-set lighting, cameras, and materials can speed up future projects.

Step 7: Common Mistakes to Avoid

Let’s highlight some mistakes beginners often make:

• Exporting from a plan view instead of 3D.
• Forgetting to join elements, causing material chaos.
• Ignoring scale differences, leading to odd proportions.
• Importing an overloaded model with every detail, which slows Blender.
• Expecting Revit textures to look perfect in Blender—they rarely do.

By avoiding these, your workflow will stay efficient and frustration-free.

FAQs on Importing Revit Files to Blender

Can I import Revit files directly into Blender?
No, Revit files must be exported as FBX before importing into Blender.

Do Revit materials transfer to Blender?
Sometimes, but textures often break. It’s better to reassign materials in Blender.

Why does my model look tiny in Blender?
Revit and Blender use different unit systems. Check and adjust the scale.

Is Blender good for architectural rendering?
Yes, Blender is widely used for architectural visualization because it’s free and powerful.

Can I animate Revit models in Blender?
Yes. Once imported, you can animate walk-throughs, lighting, or camera paths in Blender.

Conclusion: From BIM to Visualization

Revit excels at design and documentation, but Blender shines when it comes to visuals. By combining the two, you get the best of both worlds—precise models from Revit and stunning renders from Blender.

The process is simple: export from Revit as FBX, import into Blender, clean the model, assign materials, and render. Once you’ve practiced this workflow, it becomes second nature.

For students, it’s a cost-effective way to create professional presentations. For professionals, it adds flexibility and control over visuals without expensive rendering software.

So, next time you need eye-catching visuals, try importing Revit files to Blender. You’ll be amazed at how much more impact your designs can have.
