SketchUp – Curic Face Array Plugin: Simplifying Pattern Creation and Surface Design

Introduction – When Repetition Becomes Design

If you have ever tried to repeat an element evenly across a surface in SketchUp, you know how slow the process can be. Duplicating, rotating, and aligning each component eats up precious hours and still leaves tiny gaps or overlaps. The Curic Face Array Plugin changes that story.

This extension, part of the Curic toolset, automates pattern creation directly on faces. With it, architects and designers can turn flat walls, curved façades, or even custom panels into patterned compositions within seconds. Think of it as a helper that reads the geometry of any surface and spreads your design intelligently across it.

In this guide, we’ll explore how it works, what each option does, and how you can use it to make your workflow faster and more creative—whether you are detailing a façade or designing furniture.

Understanding What the Curic Face Array Plugin Does

At its core, Curic Face Array automates the act of copying components or groups over a selected face. It reads the boundaries of that face and distributes objects evenly according to user-defined spacing. The plugin also trims excess geometry so that patterns stay perfectly within their limits.

This is extremely useful in architectural modeling, where repeated elements define rhythm and proportion. Instead of manually building grids for perforated screens, louvers, or tiles, you can set up a single module and let the plugin generate the array. It supports both flat and gently curved surfaces, maintaining clean topology and accurate alignment.

Curic Face Array is part of the wider Curic Tools ecosystem—a collection of SketchUp extensions built to simplify repetitive modeling. Together with Curic Mirror, Curic Stretch, and Curic Align, it forms a toolkit aimed at professionals who want to keep SketchUp fast but precise.

Installing and Setting Up the Plugin

Setting up Curic Face Array takes only a few steps.
First, download it either from the SketchUp Extension Warehouse or directly from the Curic developer’s website. After downloading the .rbz file, open SketchUp and go to Window → Extension Manager → Install Extension. Select the file, click Install, and you’ll find Curic Face Array under the Curic Tools toolbar.

Once installed, restart SketchUp. You should see a new icon labeled “Face Array.” Clicking it opens a compact dialog box with options for Pattern, Surface Area, Trim, Overlap, and Inside. Don’t worry—each of these will make sense as we explore them.

Exploring the Interface and Key Functions

The plugin’s interface may look simple, but it hides powerful automation. Let’s walk through each function the way you would encounter it in practice.

1. Selecting or Creating a Pattern

Every array begins with a base component or group. You can use any geometry—tiles, perforated panels, or custom motifs. After selecting your component, click the Folder icon in the plugin window to load it as your active pattern.

Many designers maintain a library of reusable patterns for efficiency. Keeping them organized allows quick swapping between different façade or panel ideas. The plugin remembers the last used pattern, making iteration faster.

Curic Face Array - Copy objects in face

Patterns are available inside the plugin, It can be selected or can be created and loaded.



Pattern selected from a Folder option inside the plugin

2. Selecting the Target Surface

Next, choose the face on which the pattern should appear. Under Surface Area, select the plane, curved surface, or even a segment of a complex model. The plugin projects and aligns the base component across that face.

Under - Surface -Area, is clicked and the plane to which pattern to be applied is selected.

Because the tool reads actual face boundaries, it can apply the pattern to rectangular, polygonal, or curved areas without manual grid setup. This feature alone saves hours in façade prototyping or interior wall detailing.

3. The Trim Option – Keeping Borders Clean

One of the cleverest aspects of Curic Face Array is its Trim function. When enabled, it automatically removes pattern parts that extend beyond the selected face.

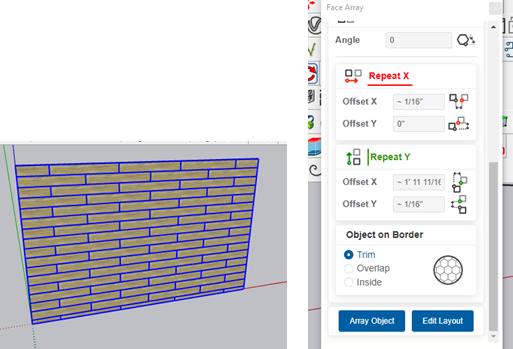

Trim Option is selected , under Object on Border

 The extra pattern outside the plane is trimmed off.

Imagine designing a decorative metal panel. You want the perforations to stop precisely at the frame edges. Trim ensures that nothing spills out, giving you a tidy boundary ready for fabrication drawings. For architects, this means fewer post-processing corrections in layout sheets.

4. The Overlap Option – Seamless Joins

Sometimes patterns need slight overlaps to maintain continuity, especially with curved or sloped surfaces. The Overlap option allows components to interlock by a defined margin.

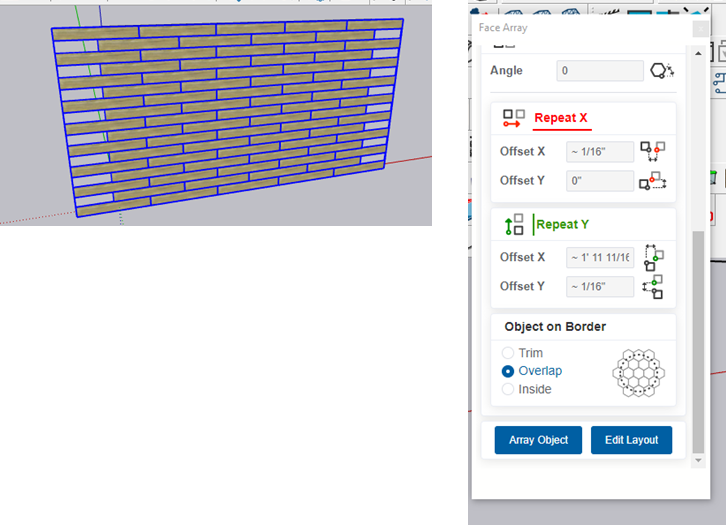

On Selecting Overlap Option

This prevents visible gaps when patterns meet along complex edges. It’s particularly helpful for façade cladding, roof shingles, or tessellated materials. The feature provides that handcrafted precision that manual duplication can rarely achieve.

5. The Inside Option – Controlled Density

Designers occasionally want patterns to fill only part of a surface, leaving blank zones for contrast. The Inside setting limits the array within inner boundaries or defined offsets.

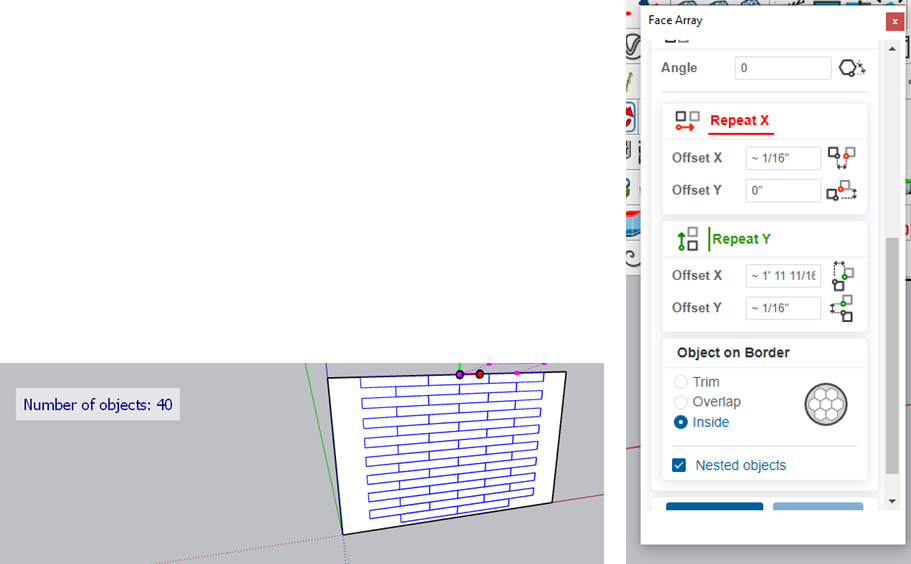

On selecting the Inside option

Patterns laying is changed accordingly.

The pattern is not filled for the entire plane.

Think of it as masking for geometry. It enables you to craft gradients, transitions, or perforations that fade into solid areas—perfect for acoustic panels or artistic installations.

Workflow Example – From Concept to Patterned Surface

Let’s imagine you’re modeling a building façade that needs a hexagonal metal screen. Traditionally, you’d copy hexagonal components manually, align them by eye, and spend hours cleaning edges. With Curic Face Array, the process becomes almost instant.

1. Model a single hexagon and make it a component.
2. Open Curic Face Array and select the component as your pattern.
3. Choose the façade face as your target surface.
4. Enable Trim to restrict geometry within the façade boundary.
5. Adjust overlap slightly to ensure tight seams.
6. Click Generate.

In seconds, the screen appears, perfectly distributed and neatly cropped. You can now duplicate the entire wall or test different tile designs without rebuilding from scratch.

This workflow illustrates why Curic Face Array is becoming a staple for architects—it automates technical repetition, leaving you free to focus on proportion, rhythm, and design intent.

Practical Applications in Architecture and Design

Façade Design and Cladding Patterns

Architects often deal with surfaces defined by repetition—brick modules, panels, perforations, louvers. The plugin’s ability to apply arrays directly on faces makes it ideal for experimenting with different façade textures.

For example, you can test a screen pattern for light filtration, then instantly replace it with another design to compare aesthetics and shadow behavior. Such speed fosters exploration, not just production.

Interior Design and Decorative Elements

Inside buildings, repeating motifs bring visual unity. Whether you are designing acoustic panels, ceiling lattices, or feature walls, Curic Face Array can distribute patterns across complex shapes.

Interior designers appreciate that it maintains proportion while allowing easy adjustments to spacing or density. You can model a few prototypes, render them, and show multiple concepts to clients—all within one SketchUp session.

Product and Furniture Modeling

Furniture designers use the plugin to create perforated doors, patterned panels, or intricate joinery. Instead of drawing each slot manually, you design one unit, select the surface, and let the plugin replicate it precisely.

The result? Lighter models, faster turnaround, and clean geometry ready for CNC or 3D printing workflows.

Comparing Curic Face Array with Other SketchUp Plugins

SketchUp’s ecosystem is full of patterning tools, but each solves a slightly different problem. Flowify bends geometry along curved surfaces, Component Array distributes objects in regular grids, and SketchUV maps textures.

Curic Face Array distinguishes itself by working directly with faces rather than relying on guide geometry. Its pattern stays constrained within real model limits, ensuring accuracy during fabrication or documentation.

Moreover, the plugin’s clean interface and instant preview reduce trial-and-error. When combined with Curic Mirror for symmetrical duplication or Curic Stretch for dynamic resizing, it becomes a complete modeling ecosystem that blends flexibility with control.

Tips for Professional Results

Clean geometry always produces better arrays. Before running the plugin, check that faces are planar and edges are closed. Delete stray lines that could confuse the algorithm.

Use lightweight components for patterns—excessive detail can slow SketchUp, especially on large façades. Test a small area first, adjust spacing and orientation, and then scale up.

Finally, store frequently used patterns in a dedicated library folder. Over time, you’ll build a personal kit of screens, tiles, and motifs ready for reuse.

Common Issues and How to Fix Them

Even the smartest tools meet tricky geometry. Here are frequent challenges and how to solve them naturally within your workflow.

Pattern not appearing: Check face orientation. Reverse the face if the array seems invisible—the plugin projects only on front faces.

Lag or freezing: Large models with high-poly components can overwhelm SketchUp. Simplify components or reduce density before regenerating.

Overlapping geometry: Slightly decrease pattern spacing or disable overlap. Curic Face Array responds immediately to parameter changes.

Curved face distortion: On very tight curves, reduce component size or segment the surface into smaller patches. This keeps alignment clean.

By troubleshooting with awareness, you’ll maintain consistent results while modeling at professional speed.

Why Designers Rely on Curic Tools

The popularity of Curic tools lies in their philosophy: simplify the repetitive, empower the creative. Instead of adding heavy parametric systems, they integrate seamlessly into SketchUp’s intuitive modeling flow.

For architects, that means less time managing commands and more time refining light, proportion, and materiality. Curic Face Array becomes not just a plugin but a daily assistant—translating repetitive technical steps into effortless design gestures.

Going Beyond Façades – Experimentation and Creativity

Because the plugin works on any surface, it encourages experimentation. Students use it to study pattern density and light diffusion. Artists apply it to generate digital lattices and sculptures. Product designers employ it for prototyping ventilation slots or texture variations.

This flexibility blurs the line between architecture, art, and fabrication. Each new surface becomes a canvas for exploration. With Curic Face Array, repetition transforms into rhythm—a principle that underlies every great design language.

FAQs

Q1. What exactly does Curic Face Array do in SketchUp?
It duplicates selected components or groups across a face, creating precise arrays on flat or curved surfaces with adjustable spacing and trimming.

Q2. Can I use it for organic shapes?
Yes, within limits. The plugin handles gently curved surfaces well. For extreme organic geometry, segment the surface for better control.

Q3. Is it compatible with the free version of SketchUp?
Most features work in SketchUp Make 2017 and later, though professional users prefer SketchUp Pro for complete extension support.

Q4. How do I fix slow performance?
Use low-polygon components, apply arrays on grouped geometry, and turn off shadows while editing to speed up the interface.

Q5. Is Curic Face Array part of a larger plugin suite?
Yes, it belongs to the Curic Tools collection alongside Mirror, Align, Stretch, and Slice—extensions designed to streamline 3D modeling tasks.

Conclusion – Repetition with Purpose

Architecture and design thrive on repetition, but repetition doesn’t have to mean monotony. The Curic Face Array Plugin converts mechanical copying into creative composition. By understanding its few yet powerful options—Trim, Overlap, and Inside—you can design façades, panels, and details that feel precise yet alive.

This tool embodies what modern digital craftsmanship should be: intuitive, efficient, and empowering. When modeling becomes effortless, creativity expands. Whether you’re a student testing patterns or a professional crafting real-world surfaces, Curic Face Array lets you focus on what matters—the design itself.
