Rendering Effects in Revit (Part 3): Floor Highlighting, Filters, and Custom Angles

Part 3: Floor Highlighting, Filters, and Custom Angles

Introduction

Now that we’ve covered outlines, colors, transparency, and element highlighting, it’s time to bring it all together. In this final part of the rendering effects in Revit series, we’ll focus on advanced techniques like floor highlighting, filters, and creating custom camera angles for presentations.

These methods help you craft professional visuals that stand out in competitions, classes, and client meetings.

Step 1: Highlighting Floors with Colors

You can assign custom colors to different floors to make your design easier to read. Open Visibility/Graphics → Overrides and apply a unique color to each level.

For example, the ground floor could be light gray, the first floor blue, and the roof orange. This makes your floor plan presentation clear at a glance.

Step 2: Using Filters for Custom Highlighting

Filters can also be applied to floors and categories. For example, highlight only load-bearing walls or only mechanical equipment. By setting rules, you can fine-tune what stands out in your view.

Step 3: Adjusting Camera Angles for Presentations

A static view can sometimes feel flat. By moving the camera slightly or tilting it to an angle, you can create more dynamic views. Combine angled views with highlighted floors for a visually powerful rendering.

Step 4: Exporting for Presentations

Once your rendering is ready, export it as an image or place it on a sheet. Go to File → Export → Images and choose resolution settings. Exported renderings keep colors, transparency, and highlights intact.

Case example of Rendering Effects in Revit (Part 3)

There are several possibilities for rendering

Lets see one more type.

1. Select all the elements in the view.

Under Modify - Select Filter (Filter dialogue box)

2. Check none.

3. Select only the elements you want to highlight -Lets check Floor alone from the dialogue box.

4. Click Apply and Ok.

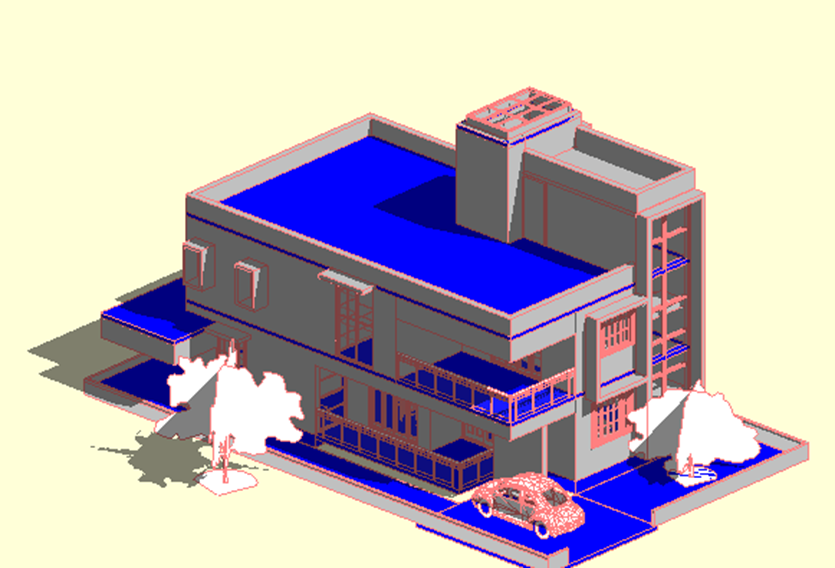

Above is the desired view for the Input given.

For the selected floors - Open View specific Element graphics - Set the Foreground and background colors.

Set Transparency to zero .

Now View on different angle has to be generated From the Active 3D View window.

In the Project browser Right click on 3D - Duplicate view- Duplicate with Detailing

3D Copy 1 view is created and its view can set to desired angle.

3D Copy 1 - Is the Duplicated 3d view of 3D

3D copy 1 does not affect the 3D view its visible from the above image.

You can try this option now on your own.

It's time to Explore!

Best Practices for Advanced Rendering Effects

• Keep floor colors subtle and professional.
• Use filters only for important elements.
• Experiment with angles but keep the model clear.

Common Mistakes to Avoid

• Over-coloring every floor, which can confuse instead of clarify.
• Tilting the camera too much, making the building look distorted.
• Forgetting to adjust export resolution for presentations.

Conclusion

With floor highlighting, filters, and custom angles, you now have a full toolkit of rendering effects inside Revit. You don’t need Photoshop or Illustrator to create professional visuals—Revit has all the tools you need.

This completes our Rendering Effects in Revit series. From outlines to transparency, highlighting to filters, you can now create clean, powerful, and professional renderings directly in your Revit workflow.
