Organize Levels in Revit: A Step-by-Step Guide for Clear and Efficient Models

Introduction: Why Organizing Levels Matters

Every Revit project starts with levels. They may look like simple horizontal lines in elevation or section views, but they are the backbone of your model. Levels define where floors, ceilings, and reference planes go. They also provide structure for everything else you add to your design.

When levels aren’t organized, projects quickly become messy. You might see misaligned floors, missing elevations, or overlapping markers. These issues confuse not only you but also your teammates. That’s why learning how to organize levels in Revit is one of the most important skills for both beginners and advanced users.

In this guide, we’ll explore levels in detail. You’ll learn what they are, how to switch between 2D and 3D extents, how to align them across views, and how to avoid common mistakes. By the end, you’ll have a clean and professional model that’s easier to work with.

Step 1: Understanding Levels in Revit

Levels are reference planes that help structure your building. Think of them as the invisible scaffolding of your model. Each level usually represents a floor, a ceiling height, or a key horizontal division in the building.

You’ll find levels in elevation views and section views, represented by horizontal lines with markers at each end. These markers can be adjusted, renamed, and extended. Every time you create a new floor or ceiling, you’ll rely on levels.

Organized levels make modeling smoother. For example, if you’re working on a five-story building, you’ll want each floor level spaced evenly and named clearly. Without proper organization, walls might not attach to the right levels, or views could go missing.

Step 2: Switching Levels to 2D Extents

In Revit, level markers can be displayed in two ways: 2D extents or 3D extents.

When you switch a level to 2D extent, changes apply only to the active view. This is useful when you want to adjust the length of a level line in one elevation without affecting the others. For example, if you’re cleaning up the South elevation, you can drag the level markers neatly within that view.

To switch, click the small blue symbol at the end of a level line. It will toggle between 2D and 3D. Once in 2D mode, you can drag the markers independently in each elevation.

Keep in mind: while 2D extents give flexibility, they can also create inconsistencies if overused. The same level might appear aligned in one elevation but misaligned in another.

📷 AI Image Prompt 2 (Step 2 Section): Revit elevation view with a level line highlighted in 2D extent mode, markers adjusted only within that view.

Step 3: Switching Levels to 3D Extents

The second option is 3D extent, and this one affects all views across the project. If you drag a level marker in 3D mode, it aligns everywhere—North, South, East, and West elevations.

To reset a level back to 3D, right-click on the marker and choose Reset to 3D Extents, or double-click the blue symbol. This ensures consistency, especially for large projects where multiple people are working together.

Using 3D extents is the safer choice when you’re setting up your project framework. It guarantees that all views show the same level alignment, reducing errors later.

Step 4: Aligning and Organizing Levels Across Views

Once you understand 2D and 3D extents, the next step is alignment. A clean set of levels should line up across every elevation and section. Misaligned levels cause confusion, especially when naming views or referencing floors.

To align, drag the markers so they snap neatly. Check each elevation view to ensure consistency. If a level looks missing, it might be in 2D extent mode in another view. Resetting to 3D often solves the issue.

It’s also important to give every level a clear name. Instead of generic titles like “Level 1” or “Level 2,” rename them to Ground Floor, First Floor, or Roof. This makes collaboration easier and avoids errors when creating drawings.

Step 5: Best Practices for Managing Levels

Good level management is about habits. Here are some tips that will keep your Revit projects tidy:

• Decide early whether to use 2D or 3D extents. Use 3D for most cases, and 2D only for view-specific adjustments.
• Keep levels clearly labeled. Consistent naming saves time during documentation.
• Avoid overlapping markers in elevations. If markers pile on top of each other, it becomes hard to read.
• Check levels regularly as your project grows. A small misalignment early can turn into a big problem later.

Case example of Organize level in Revit

A neat model is a powerful model. Start with organized levels, and everything else in your Revit workflow becomes easier.

Levels need to be organized in Revit for easy work flow.

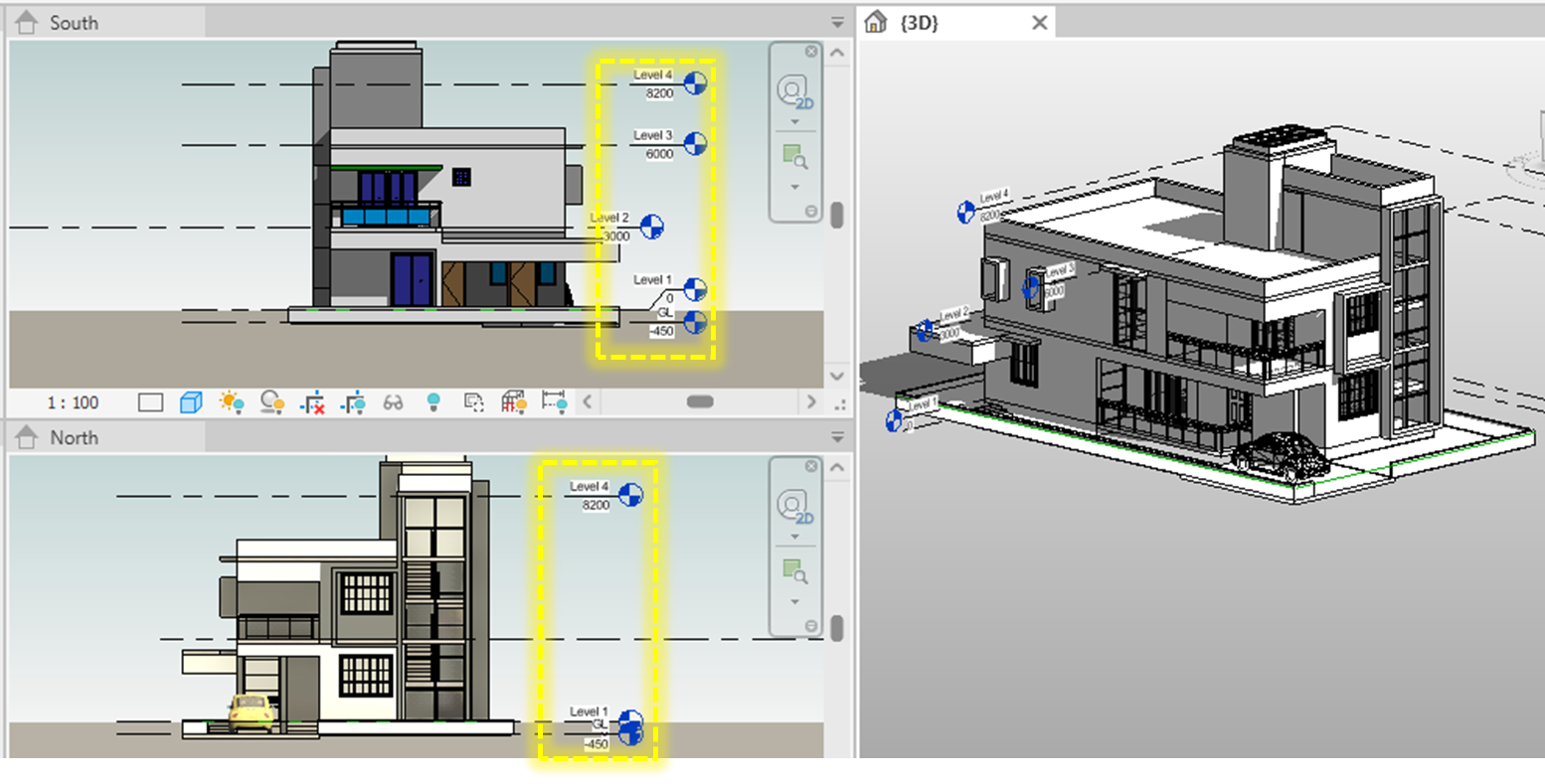

Can view in the below Tiled window levels are not organized in its alignment and levels are missing in

 the elevation.

On clicking the Level 3D or 2D can be changed

1. Switching to 2D

Levels - Switching To 2d - Level alignment which is done in South elevation is not reflected in the other view and elevation. It is specific only to that window not affecting as a whole.

2. Switching to 3D

Double click on 2D or Right click on the 2D - Reset to 3D extent

3D extent changed in the levels

Levels - Switching to 3D

Changes done in single view is reflected in all views as whole.

Common Mistakes to Avoid

It’s easy to make mistakes when you’re new to organizing levels. Some common ones include:

• Overusing 2D extents. While flexible, they lead to inconsistencies across views.
• Forgetting to reset to 3D. This causes missing or misaligned levels in other elevations.
• Leaving levels unnamed. Generic names confuse teams and lead to documentation errors.
• Crowding markers. Overlapping symbols make it hard to see which level is which.

Avoiding these mistakes keeps your project clean and professional.

Use Cases of Organized Levels

Organized levels aren’t just for neatness—they’re practical too.

In residential projects, they help define consistent floor-to-floor heights. For commercial towers, levels ensure dozens of floors are aligned properly. In educational settings, students can use levels to better understand how buildings are structured. And in team projects, well-organized levels reduce errors and save time.

No matter the scale, levels act as the foundation for accuracy in your model.

FAQs on Organizing Levels in Revit

What’s the difference between 2D and 3D extents?
2D affects only the current view, while 3D applies to all views across the model.

Can I rename levels later?
Yes, but renaming also changes associated views like floor plans. Be careful and consistent.

Why are some levels missing in my elevation?
They may be in 2D extent mode and not extended far enough into the view. Resetting to 3D usually fixes this.

Is it better to use 2D or 3D?
3D is best for consistency. Use 2D only for view-specific adjustments, like cleaning up one elevation.

Conclusion: Levels as the Foundation of a Revit Project

Levels may look simple, but they are the foundation of every Revit project. Organized levels guide floors, ceilings, and views, making your model easier to build and share.

By learning how to switch between 2D and 3D extents, align markers, and keep names clear, you set up a project that is efficient and professional. Mastering how to organize levels in Revit will save you time and prevent errors, whether you’re designing a small home or a multi-story tower.
