Sketchup - COPY ALONG CURVE

Create Rectangle

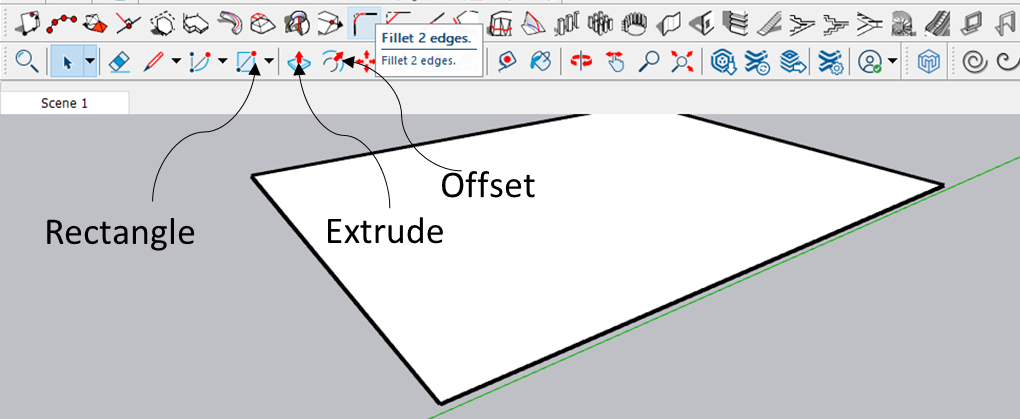

Fillet the curves to make a curved profile using Fillet 2 edges can give fillet radius.



Offset the profile to create the top at two different levels.

Extrude to two different height.



Assign Material to the desk.

Select the desk Make a component.

Create the profile that need to be copied along the curve, Make it a group.


Select the curved profile copy it and paste in place using Edit command.

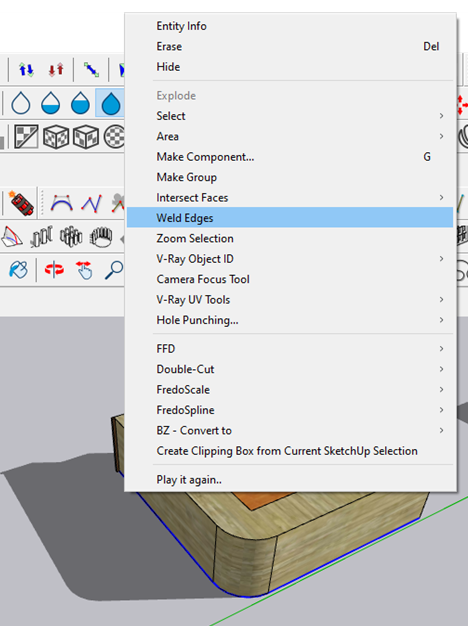

Right click and select Weld edges.


Under - Extension – Copy along curve


Select the profile to be copied along the curve.

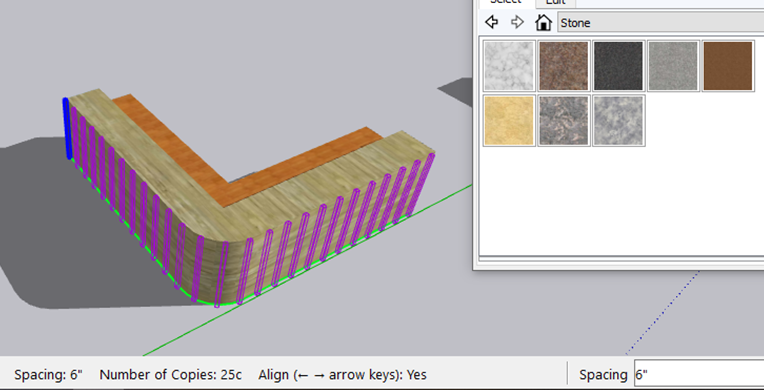

Enter the spacing between the profile


Once done can view the profile created.
