Welcome. This guide will help you master levels in Revit. I wrote it to be simple and useful. Read it like a conversation. Try the steps in a test file as you go.

Levels in Revit are small things that matter a lot. They set the vertical position for floors, roofs, and views. If your levels are right, the model behaves. If they are wrong, things move and views disappear. So, mastering levels in Revit will save you time and headaches.

This article walks you from the basics to advanced tips. You will learn how to create levels, name them, pin them, and fix common problems. I also include clear examples you can use right away.

What are levels in Revit?

Levels in Revit are datum lines. They are vertical references in your model. You use them to place floors, walls, and roofs. They also determine where plan views live.

Think of levels in Revit like floors on a ruler. Each level marks a height. Views, tags, and many elements follow that height. When you change a level, hosted elements may move with it.

Levels in Revit are powerful. They are simple to create. They can also cause big problems if wrong. That is why learning them early is worth the time.

Where and when to create levels in Revit

You must create levels in an Elevation or Section view. Plan views do not allow level creation. Revit needs a vertical view to place the level line.

Create your main levels early. Start with Ground, Level 1, Level 2, Roof, and any intermediate levels. Adding them before modeling walls helps avoid rework.

If you work with linked models, make sure level names and heights match early. Agreeing on levels in Revit across teams stops many issues later. Do this before major coordination or linking starts.

How to Add Levels in Revit

You can only create levels in Elevation or Section views.

Steps to Add a Level:

Open any Elevation View.
Go to the Architecture Tab → Datum Panel → Levels.
Shortcut key: LL.
Move your cursor to the elevation and drag vertically across the edge where you want to place the level.
A dotted guideline appears → Use it to align your level correctly.
Once created, adjust the height dimension (e.g., from 3000 mm to 4000 mm).

💡 Pro Tip: Keep your levels named properly (e.g., Ground Floor, Level 1, Roof) to maintain project clarity.

Levels can be added only to the elevation views
After clicking on the levels icon move the mouse the elevation and drag the mouse vertically across the edge with out level head.
A dotted line acts a guiding point to create the height.
Once level is created.
The height of the level can be altered by clicking on the dimension and editing it .(example- 3000 -4000mm)
Arrow head can be aligned to other side.

Editing & Aligning Level Heads

When you select a level, you’ll notice checkboxes on both ends:

✅ Left box → Shows level head on the left.
✅ Right box → Shows level head on the right.
✅ Both boxes → Displays heads on both sides.

This allows flexible annotation for drawings depending on project documentation needs.

Arrow head alignment for levels

Why Some Levels Don’t Show in the Project Browser?

Sometimes, when you copy an existing level, it won’t automatically appear in the Project Browser.
This happens because only levels created via the Level tool generate corresponding Floor Plans by default.

Once we add level through Level icon it will be reflected in the Project browser.
But some time we tend to copy a existing level and make new levels based on heights required.
In this particular case of copying where , the level will not be reflected in the project browser.

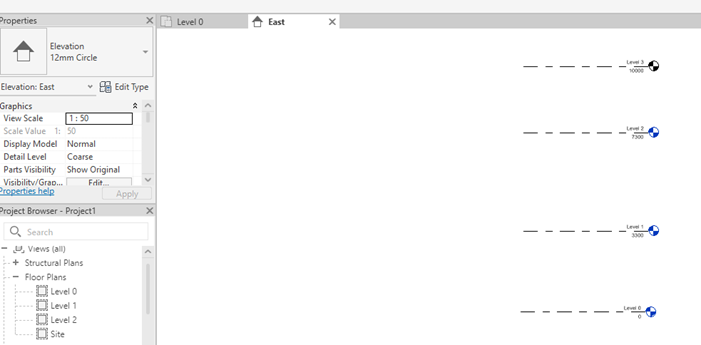

Level-3 not added in project browser

How to Add Missing Levels to the Project Browser

If your new level (e.g., Level 3) doesn’t appear:

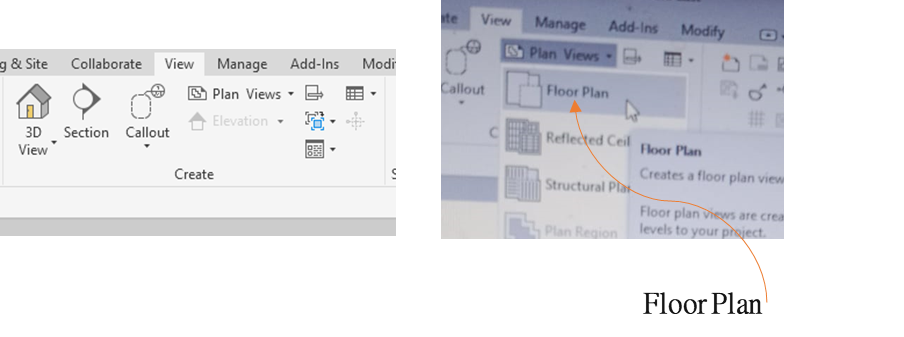

Go to the View Tab → Create Panel → Plan Views → Floor Plan.

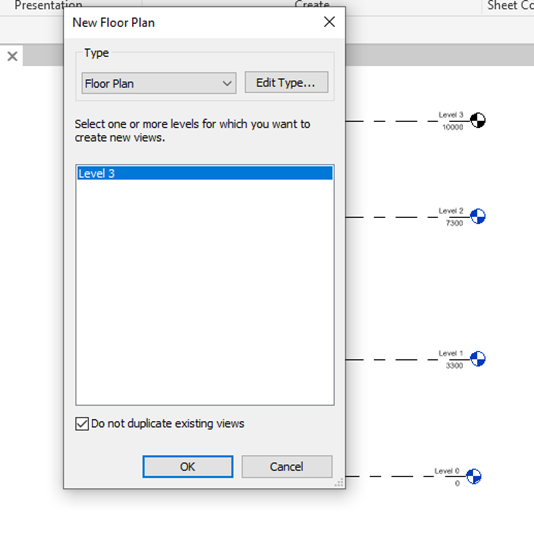

A dialog box opens → Select the missing level (e.g., Level 3).
Click OK → Now the floor plan will be visible in the Project Browser.

✅ Problem solved!

Adding Level-3

After - Level-3 Added

Before - Level-3 Added

Common beginner mistakes with levels in Revit

Beginners often try to create levels in plan views. That will not work. Always switch to an elevation or section before you add levels.

Another common mistake is copying levels without creating plan views. If you copy from another file, plan views may not be generated. Manually create the plan views when this happens.

Some users drag a level by mistake and then panic. To avoid this, type the new elevation instead of dragging. Typing is precise and safer.

Finally, many forget to name levels or use inconsistent naming. That leads to coordination problems later. Pick a naming rule and follow it from the start.

Using levels in Revit for schedules and tags

Levels in Revit can appear in schedules and tags. When you tag an element, the Level parameter is often used to show its floor. Clean level names make these tags clearer.

Include Level as a field in schedules when needed. For example, add Level to room or door schedules. This helps with reporting and coordination.

If you build automation or scripts, ensure they use the correct Level parameter. Wrong parameters lead to empty or wrong schedule rows.

Practical example: setting up levels in Revit for a small house

Open an elevation view. Create Ground, Level 1, and Roof. Type exact elevations like 0'-0", 10'-0", and 20'-0". Name them clearly.

Pin Ground and Level 1 after you set them. Create plan views for each level right away. Now place walls, doors, and windows on the correct levels.

Check temporary dimensions as you place elements. Temporary dimensions help you snap doors to exact distances. If something moves later, check the levels first.

Cheatsheet and quick actions for levels in Revit

Create Level: Elevation or Section → LL → drag to place.
Rename Level: click name → type.
Change Elevation: click numeric value → type and press Enter.
Create Plan View: View → Create → Plan Views → Floor Plan.
Pin Level: select level → Pin icon.

Keep this cheatsheet near you while modeling. It is quick to use and stops many common errors.

FAQ about levels in Revit

Can I create levels in a plan view?
No. You must use an Elevation or Section view to create levels in Revit.

Why is my new level not in the Project Browser?
If the level was copied or imported, Revit might not have auto-created a plan view. Use View → Create → Plan Views → Floor Plan to add it.

What happens when I change a level height?
Elements hosted to that level may move. Walls, floors, ceilings, and hosted families can change position.

Should I pin levels?
Yes for stable datum like base and roof. No for items you edit often. Pin to prevent accidental moves.

Can I batch-create levels from a spreadsheet?
Yes, with Dynamo or API scripts. This is useful for large projects with many levels.

Final checklist before you start modeling

Confirm the full level list. Check naming and order. Create plan views for each level. Pin the main base levels. Set view templates for new plans.

Doing these quick checks saves time. It also helps the whole team work without surprises. Mastering levels in Revit early makes every later step easier.

Closing thoughts

Levels in Revit are small and simple to use. But they control many parts of your model. Spend a few minutes to set them up right. Use consistent names. Pin the stable ones. Create the plan views you need.

If you do these things, you will avoid many common problems. Your model will be easier to share and coordinate. Keep this guide handy. Refer to it when you start a new project.
