How to Generate a Street Map in AutoCAD Using CAD Mapper (Step-by-Step Guide)

Introduction

If you’ve ever tried drawing a street map from scratch in AutoCAD, you already know how time-consuming it can be. Measuring road layouts, tracing building footprints, and making sure everything is aligned can feel overwhelming, especially for students, urban designers, or architects who just want to get started on a project. That’s where CAD Mapper comes in.

CAD Mapper is a powerful tool that allows you to take real-world map data and convert it into CAD-ready files in just a few minutes. Instead of spending hours tracing streets from Google Maps or manually importing GIS data, you can download organized CAD files directly into AutoCAD. In this guide, we’ll walk through how to generate a street map in AutoCAD using CAD Mapper, step by step.

What Is CAD Mapper and How Does It Work?

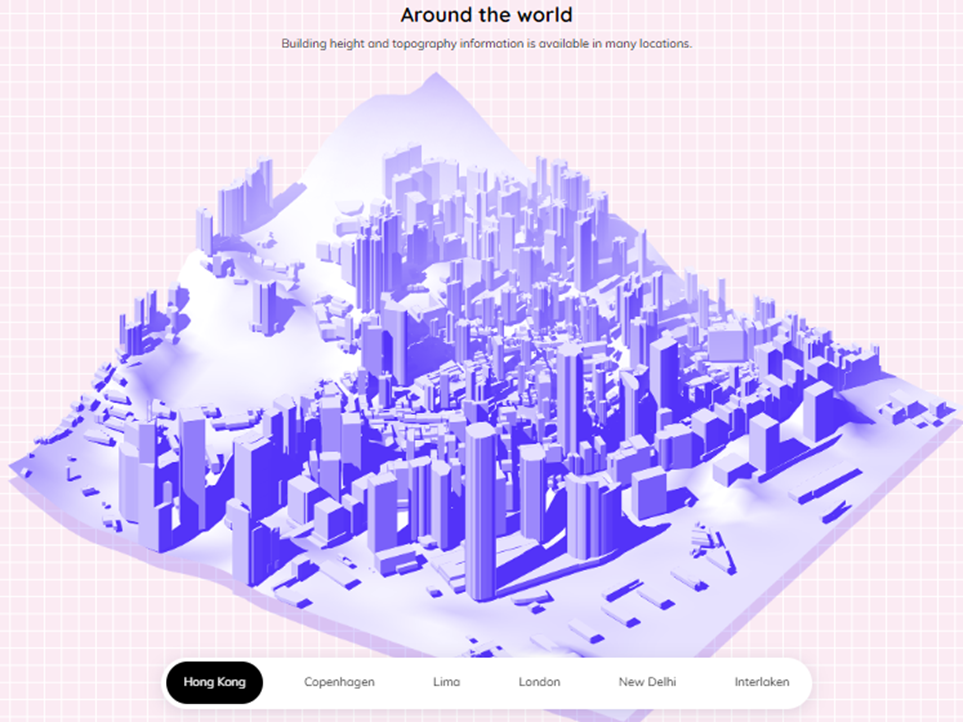

Before we jump into the process, let’s understand what CAD Mapper actually does. CAD Mapper takes open data from sources like OpenStreetMap, NASA, and the USGS, and transforms it into neatly formatted CAD files. These files can include road geometry, building footprints, topography, and even 3D building massing if needed.

The best part is how accessible it is. With CAD Mapper, you don’t need advanced GIS knowledge. You simply search for your desired location, choose the extent of the map, pick the file type you want (such as AutoCAD’s DWG format), and download it. Within minutes, you have a usable file ready to edit and design with.

This makes it especially popular among students, architects, and city planners who need quick and reliable maps to kickstart their designs.

Why Use CAD Mapper with AutoCAD?

You might be wondering, why not just draw maps manually in AutoCAD or use another software? The answer is time, accuracy, and convenience.

First, CAD Mapper saves hours of drafting work. Instead of tracing roads or importing rough images, you’re working with organized CAD layers from the start. Roads, buildings, and terrain data are already separated and labeled.

Second, the maps are based on real-world data. This ensures your designs match actual geography, which is important when you’re working on urban projects, site analysis, or planning studies.

Third, CAD Mapper integrates smoothly with AutoCAD. The files come in DWG format, which means you don’t have to worry about messy conversions or losing important details.

For students, this means you can focus more on design and less on struggling with data. For professionals, it means faster workflows and more accurate presentations.

Step-by-Step Process to Generate a Street Map in AutoCAD Using CAD Mapper

Now let’s go through the actual process. You’ll see that it’s simple enough for beginners but detailed enough for professionals to rely on.

Step 1: Go to CAD Mapper and Sign In
Visit CAD Mapper’s website. You’ll need to sign up for an account if you don’t already have one.

 Free accounts let you download maps of up to 1 square kilometer.

If you need a larger area, you’ll have to pay a small fee. Students with academic email addresses may qualify for discounts.

• Click on create file

Step 2: Search for Your Location
Use the search bar to enter the name of the city, neighborhood, or site you want to map. A world map will zoom into your location. You can drag the selection box to focus on the exact area you need.

Step 3: Set the Area Extent
At the bottom of the screen, you’ll see the size of your selected area. If it’s under 1 square kilometer, you can download it for free. If it’s larger, CAD Mapper will prompt you to purchase it.

Step 4: Choose File Format and Layers

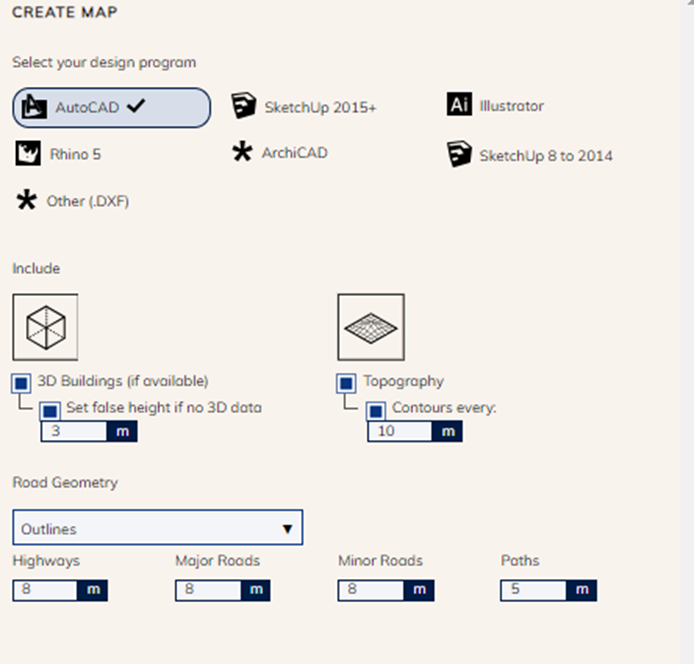

On the left-hand side, select your desired options. Choose AutoCAD (DWG) as the software output. You can also decide whether to include 3D building massing, topography, or just basic road geometry.

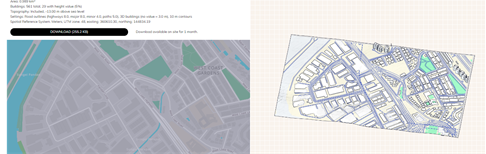

Step 5: Generate the File
Click “Create File.” CAD Mapper will process your request, which usually takes less than a minute. Once ready, a download link appears.

Step 6: Download and Save
Click the download button and save the file to your computer. You now have a CAD-ready street map file that can be opened directly in AutoCAD.

Importing CAD Mapper Files into AutoCAD

Once you’ve downloaded your map, it’s time to bring it into AutoCAD.

Open AutoCAD and create a new project. Use the Insert or Import command to bring in your downloaded DWG file. Depending on your AutoCAD version, the file should appear with multiple layers, each representing different data (roads, buildings, topography).

You may need to set your units and scale correctly. CAD Mapper files are typically geo-referenced, but depending on your AutoCAD settings, the scale might need adjusting. Make sure to check distances with the Measure tool to confirm accuracy.

At this stage, you’ll have a clean map imported into AutoCAD. You can immediately start editing, adding labels, or adjusting the layout to suit your project needs.

Customizing Your Street Map in AutoCAD

The beauty of CAD Mapper files is that they’re not just static images—they’re editable. Here’s what you can do once the file is inside AutoCAD:

• Edit Road Geometry: If you only need certain streets, you can trim or erase unnecessary sections.
• Add Labels or Annotations: You might want to label roads, landmarks, or important intersections to make your map more informative.
• Clean Up Layers: Sometimes extra layers may clutter the drawing. Simplify by turning off or deleting what you don’t need.
• Convert to 3D: If you selected 3D buildings or topography, you can extrude elements to create a more realistic model of the site.

Customizing your map makes it more relevant to your project and gives you full creative control.

Common Issues and How to Fix Them

Even though CAD Mapper is simple to use, you might run into a few common issues.

Issue 1: The File Is Too Large
If your selected area is bigger than 1 square kilometer, CAD Mapper requires payment. To avoid this, you can break the area into smaller sections and download multiple files.

Issue 2: Missing Details
Sometimes, not all streets or buildings are included. This usually happens when OpenStreetMap data for that location is incomplete. In that case, you may need to manually add details in AutoCAD.

Issue 3: Scaling Errors
Occasionally, imported files may not match the correct real-world scale. Always double-check with the Measure tool and adjust units if needed.

Issue 4: Overlapping Layers
Too many layers can clutter your drawing. Use AutoCAD’s Layer Manager to hide or delete unnecessary ones.

By understanding these issues ahead of time, you’ll save yourself from frustration and keep your workflow smooth.

CAD Mapper Alternatives for AutoCAD Users

While CAD Mapper is one of the easiest tools to use, it’s not the only option. Other methods include importing GIS shapefiles directly into AutoCAD Civil 3D, using QGIS to prepare data before exporting, or purchasing city planning datasets from local governments.

However, most of these methods require technical skills or expensive software. CAD Mapper stands out because it’s user-friendly and fast. For most students and professionals who just need a quick street map, it’s the most practical option.

Conclusion

Creating a street map in AutoCAD doesn’t have to be a daunting task. With CAD Mapper, you can download ready-to-use CAD files in minutes, saving time and ensuring accuracy. The process is straightforward: sign in, search your location, set the area, choose your options, generate the file, and import it into AutoCAD. From there, you can customize and refine the map for your specific project.

Whether you’re a student working on a class assignment, an architect preparing a site plan, or a city planner studying an area, CAD Mapper offers a simple way to bridge real-world data with your design tools. Once you get the hang of it, generating maps this way will become second nature.

So, next time you’re faced with the challenge of drawing a street map in AutoCAD, remember that with CAD Mapper, most of the work is already done for you.
